SKU: CAE-8000ET
1 2 3 4 5
1 2 3 4 5
Runs small True to size Runs large
Guaranteed secure & safe checkout.
The Canadian Auto Equipment 4 Post Storage Lift CAE-8000 ET (Extra Tall) also has the new lock ladder system as the CAE Standard 4 posts lift. We believe that this locking system is the safest locking system for any four post lift. The lock ladder system also provides a multiple number of runway locking positions. Older versions of four post lifts were welded locks which you could not adjusted. The lock ladder is adjustable inside the column to achieve proper runway height.
Other unique features of the Canadian Auto Equipment 4 Post Storage Lift CAE-8000 ET (Extra Tall) are:

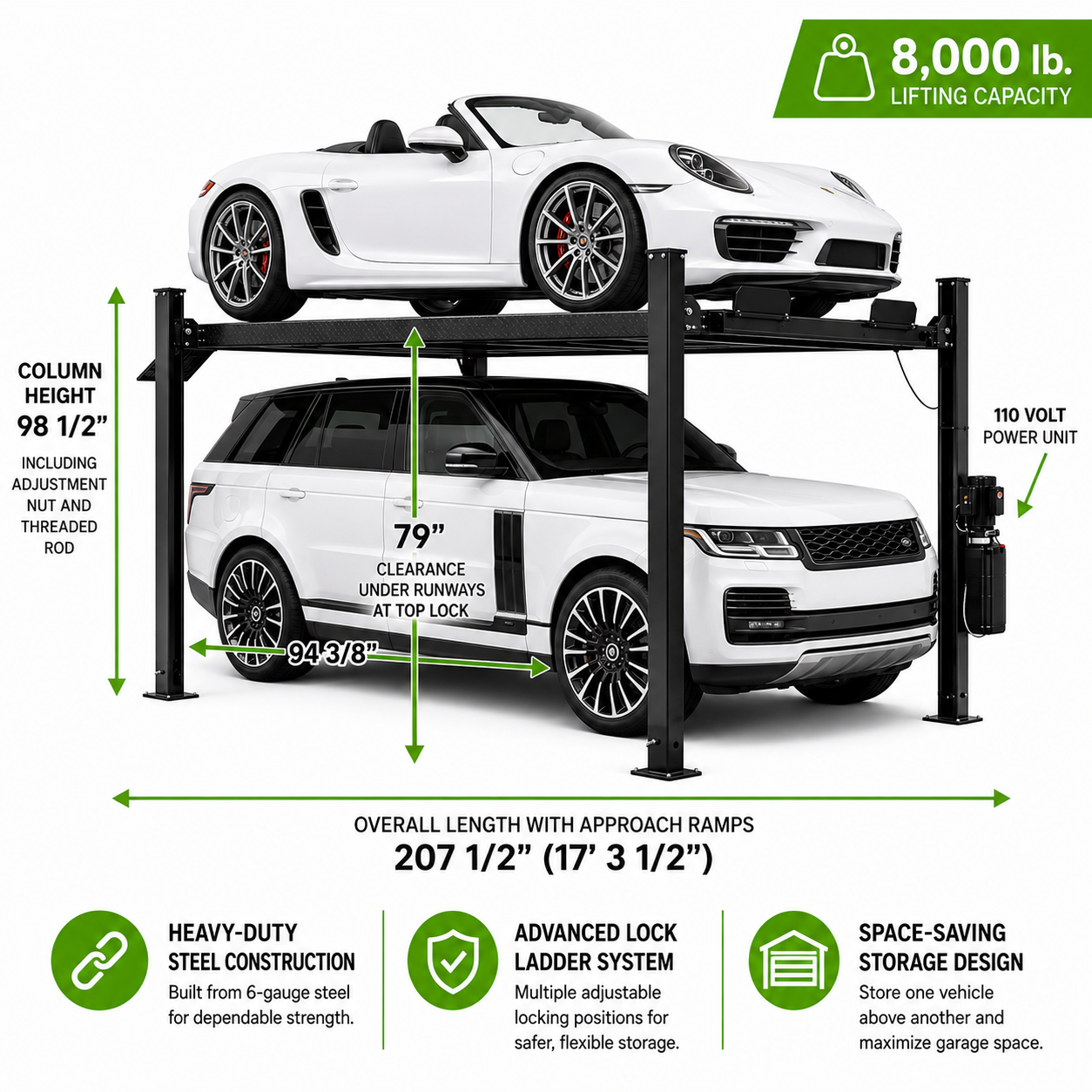

Specifications
| Model | CAE-8000 ET (8000LB 4 Post Extra Tall) |
| Capacity | 8,000 LB |
| Shipping Weight | 1720 LB |
| Oil requirements | 3-5 Gallons AW32 |
| Power unit - Motor | 110 Volt |
| Lifting Height (top of runway) | 84 1/2" |
| Clearance (under runways @ top lock) | 79" |
| Length (w Approach Ramps) - overall | 207 1/2" |
| Length (w/o Approach Ramps) - overall | 175 1/2" |
| Width (w/o Motor) | 104" |
| Width (w Motor) | 114" |
| Height of column | 98 1/2" |
| Approach Ramps | 36 3/8" |
| Runway width | 18 1/4" |
| Runway length | 165 1/2" |
| Thickness of runway | 5 1/4" |
| Distance between runways | 37" |
| Size of Column | 6 1/4" x 3 3/8" |
| Distance between columns | 94 3/8" |
| Length Between Columns | 157 1/2" |
| Column base | 9 5/8"x 11 1/2" |
| Drive thru (outside to outside of tire) | 80 1/2" |
| Cable Diameter | .350" |
| Gauge Of Steel | 6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Locking heights/positions (+/- 2") | 24 1/4",30 1/4",36 1/4",42 1/4",48 1/4",54 1/4",60 1/4",66 1/4",72 1/4",78 1/4", 84 1/4" |
