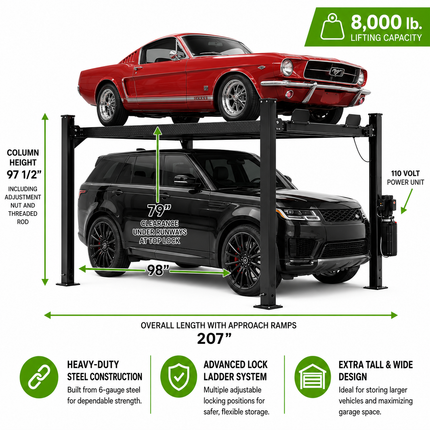

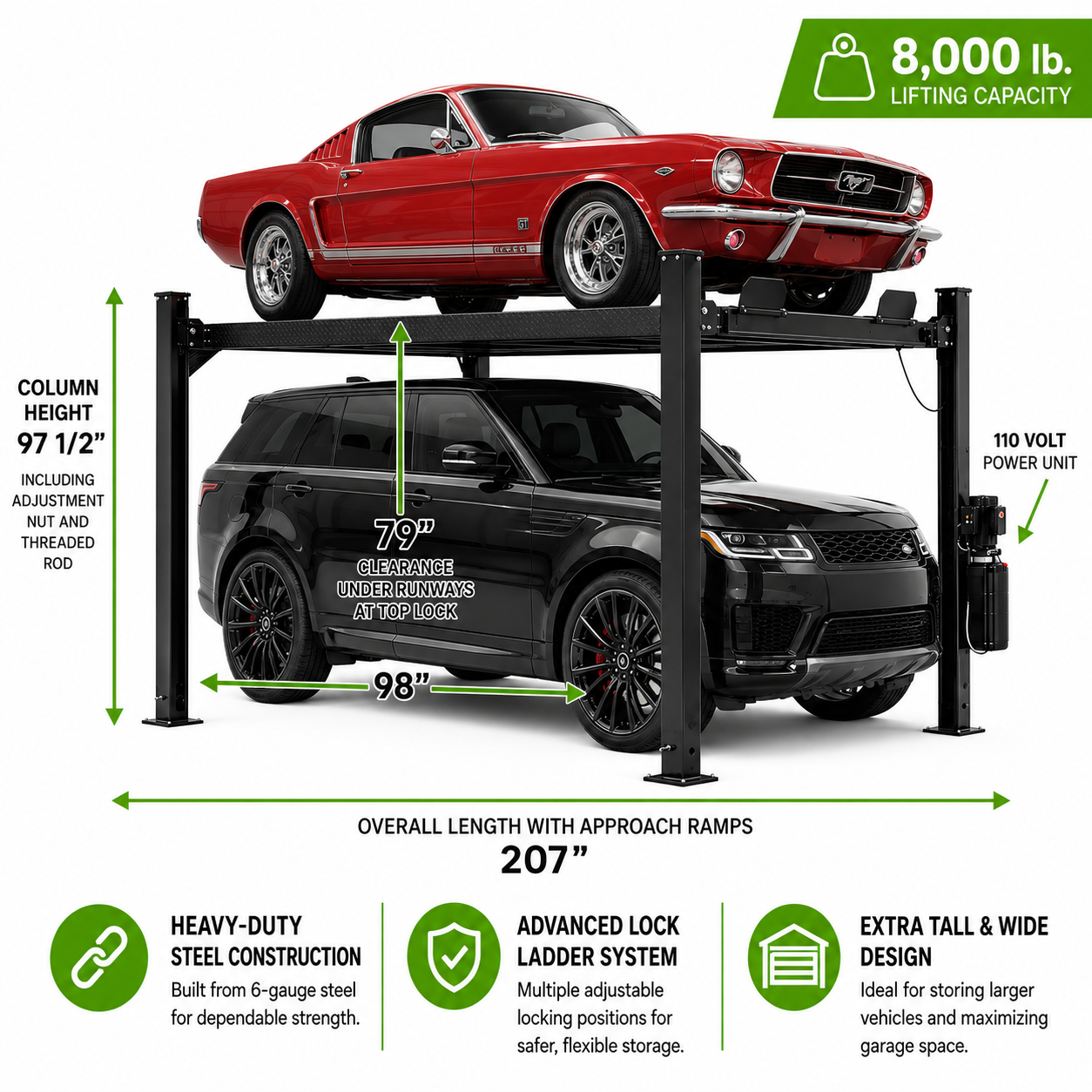

The Canadian Auto Equipment 4 Post Storage Lift CAE-8000 ETW (Extra Tall and Wide) also has the new lock ladder system as the CAE Standard 4 posts lift. We believe that this locking system is the safest locking system for any four post lift. The lock ladder system also provides a multiple number of runway locking positions. Older versions of four post lifts were welded locks which you could not adjusted. The lock ladder is adjustable inside the column to achieve proper runway height.
Other unique features of the Canadian Auto Equipment 4 Post Storage Lift CAE-8000 ETW (Extra Tall and Wide) are:
Two position locking mechanism; Flow Restrictor valve; Zerk grease fittings; Easy roll caster wheel kit (optional); Jack Tray (optional); Single point lock release; No anchoring needed*; Easy 2 person job. *If the CAE 4 Post Storage Lift is not anchored to the floor the lift could have some movement. This movement does not compromise the stability or integrity of the lift itself
Specifications
| Model | CAE-8000 ETW (8000LB 4 Post Extra Tall and Wide) |
| Capacity | 8,000 LB |
| Shipping Weight | 1900 LB |
| Oil requirements | 3-5 Gallons AW32 |
| Power unit - Motor | 110 Volt |
| Lifting Height (top of runway) | 84 1/2" |
| Clearance (under runways @ top lock) | 79" |
| Length (w Approach Ramps) - overall | 207" |
| Length (w/o Approach Ramps) - overall | 175" |
| Width (w/o Motor) | 108" |
| Width (w Motor) | 116 1/2" |
| Height of column | 97 1/2" |
| Approach Ramps | 36 3/4" |
| Runway width | 20" |
| Runway length | 165 1/2" |
| Thickness of runway | 4 ½" |
| Distance between runways | 38" |
| Size of Column | 6 1/4" x 3 3/8" |
| Distance between columns | 98" |
| Length Between Columns | 157 1/2" |
| Column base | 9 5/8"x 11 1/2" |
| Drive thru (outside to outside of tire) | 84" |
| Cable Diameter | .350" |
| Gauge Of Steel | 6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Locking heights/positions (+/- 2") | 24",30",36",42",48",54",60',66",72",78", 84" |
