CAE-8000SD 4 Post Lift Standard

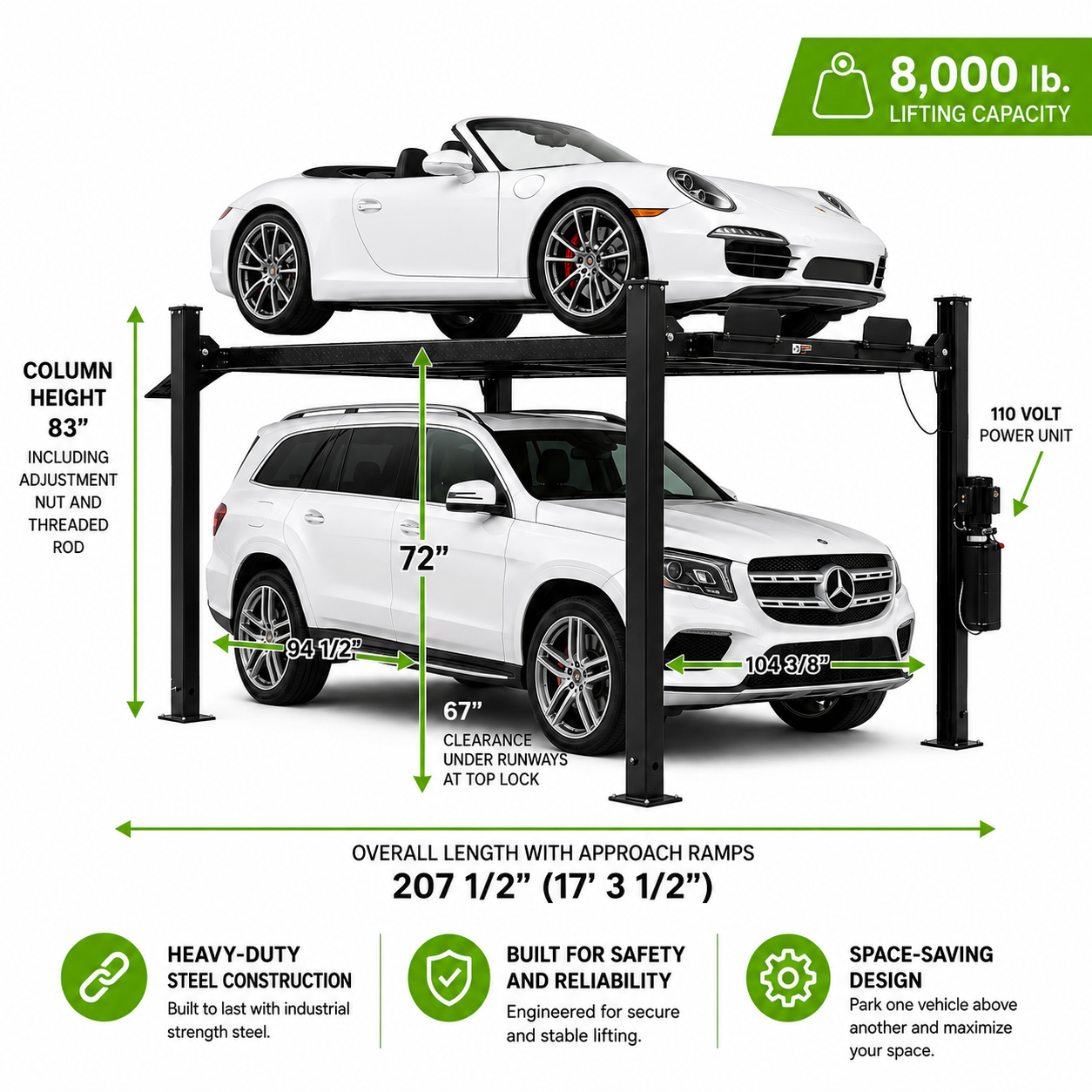

Features of the Standard CAE 4 Post Storage Lift (CAE-8000 SD) Specifications Model CAE-8000 SD (8000LB 4 Post Standard) Capacity 8,000 LB Shipping Weight 1720 LB Oil requirements 3-5 Gallons AW32 Power unit - Motor 110 Volt Lifting Height (top of runway) 72" Clearance (under runways @ top lock) 67" Length (w Approach Ramps) - overall 207 1/2" Length (w/o Approach Ramps) - overall 175 1/2" Width (w/o Motor) 104 3/8" Width (w Motor) 114" Height of column 83" Approach Ramps 36 3/4" Runway width 18 1/4" Runway length 165 1/2" Thickness of runway 4 ½" Distance between runways 37 3/8" Size of Column 6 1/4" x 3 3/8" Clearance Between Columns 94 1/2" Length Between Columns 157 1/2" Column base 9 5/8"x 11 1/2" Drive thru (outside to outside of tire) 80 1/2" Cable Diameter .350" Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm) Locking heights/positions (+/- 2") 24",30",36",42",48",54",60',66",72"
