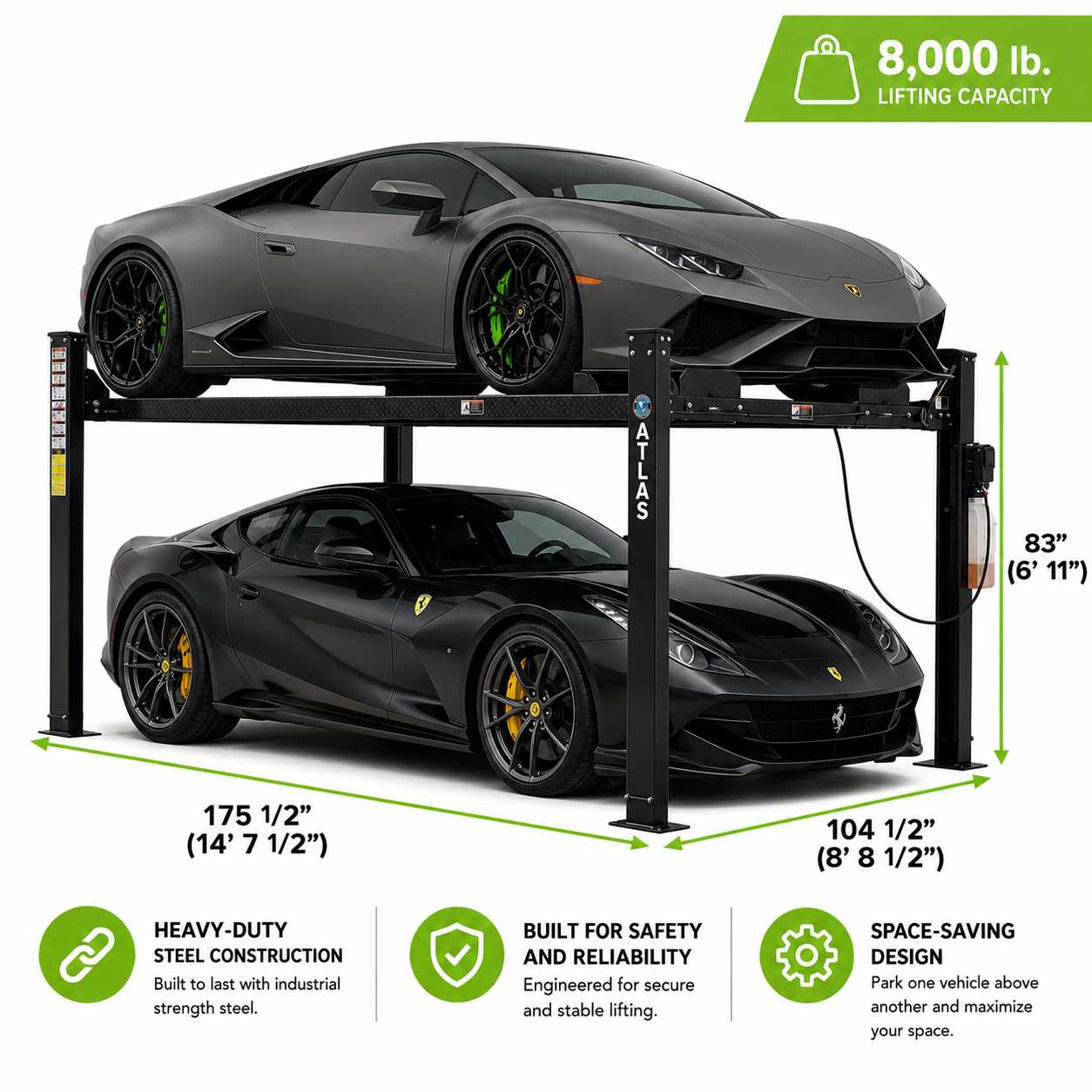

All Atlas portable four post lifts (8,000 lb. Capacity) are designed and built for use by Mr. Homeowner or restoration shop.
- ALI Certified
- 8,000 lb. Capacity
- Atlas Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Anchor Bolts Optional (Sold Separately)
- Steel Approach Ramps (Included)
- Four Wheel Stops (Included)
- Two Rubber Wheel Chocks (Included)
- Caster Kit With Polyurethane Wheels (Included)
- Drip Trays (Included)
- Jack Trays (Included)
- Perfect For Storing Or Working On Vehicles
- Shipping Weight: 1,800 lbs.
These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson. The Atlas Apex 8 is an ALI CERTIFIED four post hobbyist lift designed and built for use by Mr. Homeowner or restoration shop. What is Product Certification? - Automotive Lift Institute | Automotive Lift Institute Highlights Specifications Capacity 8,000 lb. Lifting Height To Top of Runway 72" (6') Clearance Under Runways 67 1/2" (5' 7 1/2") Height of Columns (Including Nuts) 87 1/2" (7' 3 1/2") Overall Width (Without Motor or Casters) 104 1/4" (8' 8 1/4") Overall Width (With Motor) 114 1/2" (9' 6 1/2") Overall Length without Approach Ramps (Including Lock Release Bar) 186 1/2" (15' 6 1/2") Overall Length with Approach Ramps (Including Lock Release Bar) 219 1/2" (18' 3 1/2") Approach Ramps 37 1/2" (3' 1 1/2") Runway Width 18 3/4" Runway Rail Width 2 1/2" Runway Length 165 1/2" (13' 9 1/2") Runway Thickness 4 1/2" Width Between Runways 38" (3' 2") Width Between Runway Rails 33" (2' 9") Outside Runway to Outside Runway 75 1/4" (6' 3 1/4") Size of Column 6" x 3 3/8" Clearance Between Columns 96" (8') Length Between Columns 157 3/4" (13' 1 3/4") Base of Column 11 1/2" x 9 3/4" Maximum Wheel Base 153 1/2" (12' 9 1/2") Drive Thru (Outside of tire to outside of tire) 80 1/4" (6' 8 1/4") Cable Diameter 7/16" (.4375") Gauge of Steel 6 Gauge (.1875" / 3/16" / 4.75mm) Motor/Electrical Requirement 110 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended Oil Requirement 2.6 Gallons AW32/AW46 Shipping Weight 2,000 lb.
