All Atlas portable four post lifts (9,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson.
Highlights
What is Product Certification? - Automotive Lift Institute | Automotive Lift Institute

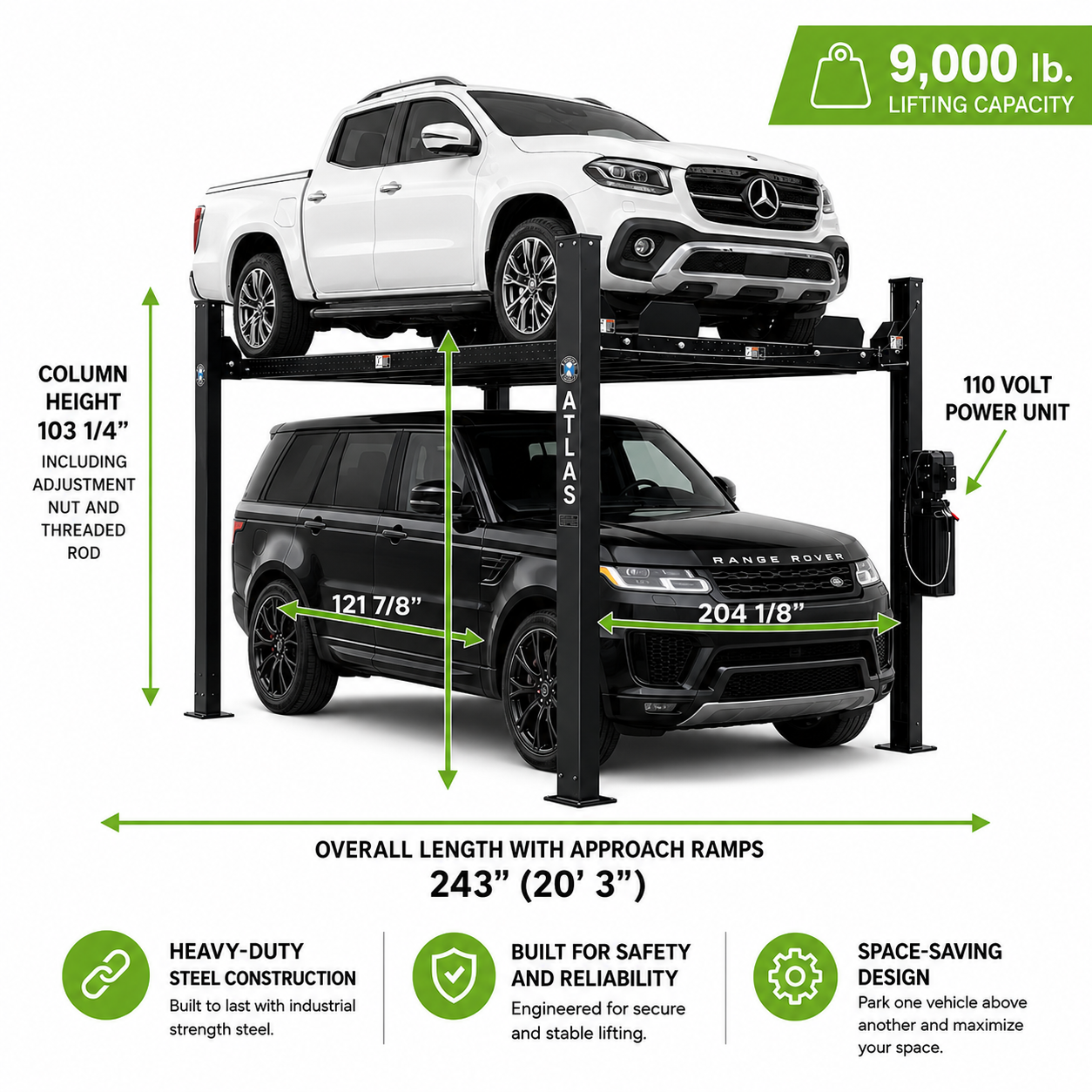

Specifications
| Capacity | 9,000 lb. |
| Lifting Height To Top of Runway (On Locks) | 80 7/8" (6' 8 7/8") |
| Clearance Under Runways | 75 1/2" (6' 3 1/2") |
| Height of Columns (Including Nuts) | 103 1/4ÂÌ´å" (8' 7 1/4") |
| Overall Width (Without Motor or Casters) | 121 7/8ÂÌ´å" (10' 1 7/8") |
| Overall Width (With Motor) | 133 7/8" (11' 1 7/8") |
| Overall Length without Approach Ramps Or Lock Release Bar | 204 1/8" (17' 1/8") |
| Overall Length with Approach Ramps (Including Lock Release Bar) | 243" (20' 3") |
| Approach Ramps | 31 1/2" |
| Runway Width | 20 1/8ÂÌ´å" |
| Runway Rail Width | 2 1/8" |
| Runway Length | 188 1/2" (15' 8 1/2") |
| Runway Thickness | 4 7/8" |
| Width Between Runways | 38 7/8" |
| Width Between Runway Rails | 34 3/4" |
| Outside Runway to Outside Runway | 79 1/8ÂÌ´å" (6' 7 1/8") |
| Size of Column | 7 5/8" x 4 5/8" |
| Clearance Between Columns | 108 1/8" (9' 1/8") |
| Length Between Columns | 184 1/4" (15' 4 1/4") |
| Base of Column | 11 5/8" x 11 5/8" |
| Maximum Wheel Base | 194ÂÌ´å" (16' 2") |
| Drive Thru (Outside of tire to outside of tire) | 97" (8' 1") |
| Cable Diameter | 7/16" (.4375") |
| Gauge of Steel | 6 Gauge (.1875" / 3/16" / 4.75mm) |
| Motor/Electrical Requirement | 110 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended |
| Oil Requirement | 2.6 Gallons AW32/AW46 |
| Shipping Weight | 2,975 lb. |
